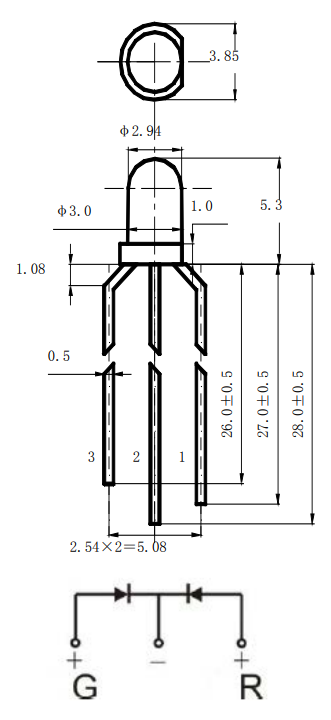

一、外形图 Outline dimensions：
|
单位 Unit |
公差 Tolerance |
芯片材质 Die material |
胶体颜色 Lens color |
发光颜色 Emitting color |
|
mm |
±0.2mm |
AlGaInP / InGaN |
White Diffused |
Red & Green |
|
項目 Item |
符号 Symbol |
數值 Value |
单 位 Unit |
|
|
功耗 Power Dissipation |
Pd |
R |
75 |
mW |
|
YG |
75 |
|||
|
正向電流 Forward Current |
IF |
R |
30 |
mA |
|
YG |
30 |
|||
|
峰值正向電流* Peak Forward Current* |
IFP |
R |
50 |
mA |
|
YG |
50 |
|||
|
工作環境溫度 Operating Temperature Range |
Topr |
-40°C ~ + 85°C |
||
|
貯藏溫度 Storage Temperature |
Tstg |
-40°C ~ + 85°C |
||
|
焊接条件 Soldering Condition |
Tsol |
260±5℃ |
||
*注：脈衝寬度≤0.1ms，佔空比≤1/10 *Note: pulse Width≤0.1ms,Duty≤1/10
|
参 数 Parameter |
符号 Symbol |
颜色 Color |
最小值 Min. |
代表值 Typ. |
最大值 Max. |
单 位 Unit |
测试条件 Test Condition |
|
發光強度 Luminous Intensity |
IV |
R |
50 |
200 |
-- |
mcd |
IF = 20mA |
|
YG |
22 |
80 |
-- |
||||
|
半光強角 Viewing Angle |
2θ1/2 |
--- |
--- |
65 |
--- |
deg |
IF = 20mA |
|
主波長 Dominant Wavelength |
λd |
R |
620 |
--- |
635 |
nm |
IF = 20mA |
|
YG |
565 |
--- |
575 |
||||
|
正向電壓 Forward Voltage |
VF |
R |
1.8 |
--- |
2.4 |
V |
IF = 20mA |
|
YG |
1.8 |
2.4 |
|||||
|
反向電流 Reverse Current |
IR |
R |
--- |
--- |
10 |
μA |
VR = 5V |
|
YG |
--- |
--- |
10 |
備註：亮度測試公差±15%，波長測試公差±1nm，正向電壓測試公差±0.1V
Remark: The tolerance of intensity ±15%, the tolerance of wavelength ±1nm, the tolerance of forwards voltage±
