QILSTE | H6-M108 Series LEDs
Time:2024-04-26 10:14:05  Click:Load...

The H6-M108 series LEDs are a popular choice in electronic design due to their compact size, high brightness, and diverse color options. These LEDs are compatible with various Surface Mount Technology (SMT) processes and meet RoHS environmental standards, making them an ideal light source solution for modern electronic products. Below is a list of models in the H6-M108 series LEDs, along with their corresponding colors and parameters:





Model


Color

Luminous

Intensity

(mcd@20mA)

Dominant

Wavelength

(nm@20mA)

Forward

Voltage

(V@20mA)

H6-M108TCG

Green

1000

515-533

2.8-3.6

H6-M108LB

Blue

230

460-475

2.8-3.6

H6-M108SY

Yellow

210

584.5-595

1.8-2.6

H6-M108B2W

White

2100

-

2.8-3.4

H6-M108FO

Orange

210

600-610

1.8-2.6

H6-M108HR

Red

230

615-630

1.8-2.6

H6-M108KYG

Yellow-Green

85

566-576

1.8-2.6


Product Advantages:

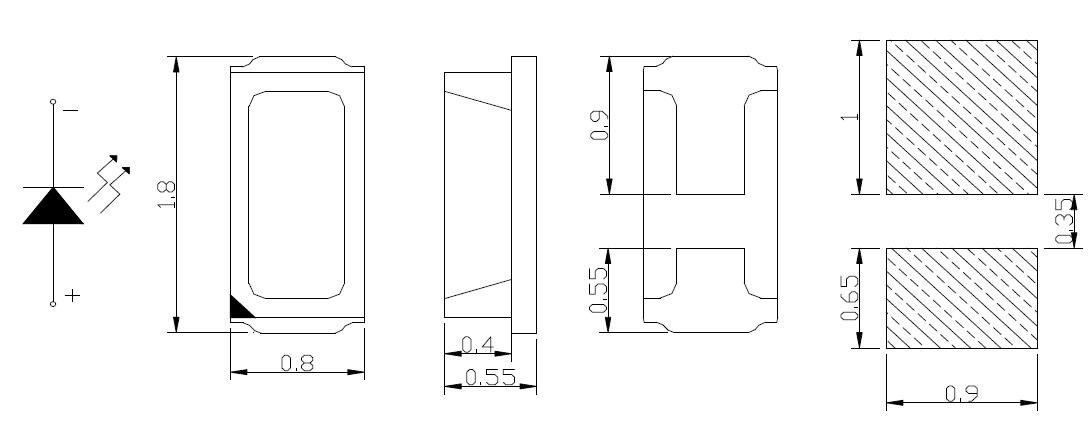

  • Compact Size: The 1.8x0.8x0.55mm dimensions make the H6-M108 series LEDs ideal for applications with limited space.
  • High Brightness: Offering a range of luminous intensity from tens to thousands of mcd, these LEDs meet various brightness requirements.
  • Stable Electrical Performance: The tolerance of forward voltage and luminous intensity is strictly controlled within ±0.05V and ±10%, ensuring product consistency and reliability.
  • Eco-Friendly Materials: Compliance with RoHS standards reduces environmental impact.
  • Moisture-Resistant Design: With a moisture sensitivity level of 5a, suitable for humid environments.


Application Areas:

The H6-M108 series LEDs are widely used in a variety of electronic devices, including but not limited to:

  • Consumer Electronics: As indicator lights or backlights for mobile phones, tablets, and other devices.
  • Industrial Control: For indicating equipment status or as a light source for small displays.
  • Automotive Electronics: Dashboard indicator lights, interior ambiance lighting, etc.
  • Medical Equipment: Signal indicators for various medical instruments.


By choosing the H6-M108 series LEDs, you will get a stable, bright, and environmentally reliable light source solution that offers exceptional performance whether in the design of innovative consumer electronics or in harsh industrial environments.
