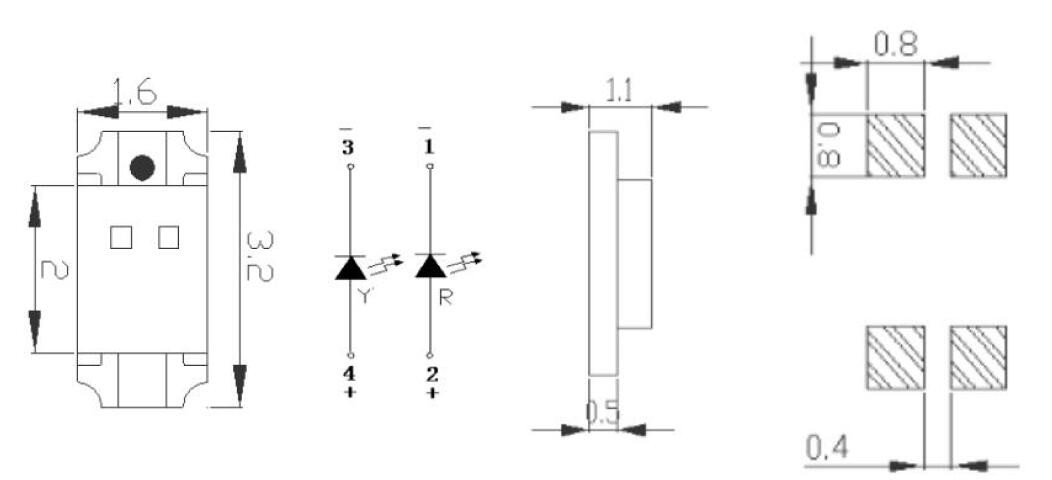

The H11-D316HRSY is a dual-color LED chip with high-brightness options in red and yellow. It features a compact size of 3.2×1.6×1.1mm, suitable for precision electronic devices. This LED chip uses a transparent flat lens, complies with EIA standard packaging, and meets ROHS environmental requirements, ensuring green production.

In terms of design, the H11-D316HRSY is compatible with SMT assembly and soldering processes, has a moisture sensitivity level of Level 3, and maintains stable performance in variable environments. Electrically, it dissipates a power of 60mW, supports a peak forward current up to 70mA, operates with a direct current of 25mA, and withstands a reverse voltage up to 5V. The operating temperature range is from -30°C to +85°C, while the storage temperature range is even broader, spanning from -40°C to +90°C.

Regarding electro-optical characteristics, the H11-D316HRSY has specific ranges for luminous intensity, dominant wavelength, and peak wavelength, ensuring product consistency and reliability. The red light brightness bin range is 72-90mcd to 140-180mcd, and the yellow light brightness bin range is similarly 72-90mcd to 140-180mcd. The forward voltage bin ranges for both red and yellow lights are from 1.8-2.0V to 2.2-2.4V, and the wavelength bin ranges are also clearly defined.

Additionally, the packaging reel and tape dimensions, label explanations, and reliability test results are detailed in the product manual. Reliability tests include operational life, high-temperature storage, temperature cycling, thermal shock, and lead-free reflow soldering processes, ensuring long-term stability and reliability of the product.

When using the H11-D316HRSY, it is important to note that LEDs are current-operated devices sensitive to voltage changes, thus a resistor in series is recommended for protection. For parallel use, individual resistors should be used for each branch to ensure color consistency. Environmental temperature affects LED performance, so it should be kept away from heat sources. For storage, it is advised to keep the LEDs in a dry, low-humidity environment and use them promptly after opening. For ESD-sensitive LEDs, appropriate ESD protection measures should be taken.

Soldering conditions for the H11-D316HRSY should follow the suggested soldering temperature curve, avoiding repeated reflow soldering or high-temperature manual soldering. After soldering, avoid applying mechanical force to the lens or bending the PCB. Furthermore, the product is intended for ordinary electronic equipment. For applications with exceptional reliability requirements, consult in advance.

In summary, the H11-D316HRSY is a stable, environmentally friendly, and reliable dual-color LED chip, suitable for a variety of electronic devices, making it an ideal choice for your electronic product's lighting solutions.
