In the LED industry, the H8-212 series product is widely recognized for its compact size and high performance. These products not only excel in their small form factor but also demonstrate superior light efficiency, stability, and environmental performance. This article will delve into the advantages and features of the H8-212 series product and present the colors and main parameters of different models in a tabular format.
The advantages and features of the H8-212 series product are mainly reflected in the following aspects:

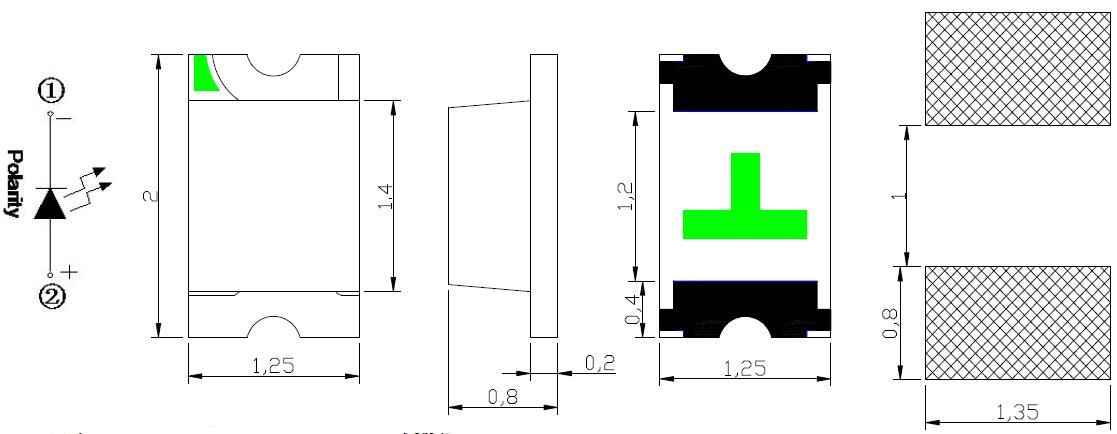

1. Compact Size: The product has a small appearance size of 2.0x1.25x0.8mm, which allows for easy integration into various compact electronic devices, providing designers with greater design flexibility.
2. High Brightness: The series offers a variety of colors, including ultra-bright standard blue, green, yellow-green, and orange, with a wide range of luminous intensity to meet different lighting needs.
3. Environmental Performance: All products meet the ROHS environmental requirements and are considered green products, helping to reduce environmental pollution.
4. Stable Performance: The products have a moisture resistance level of Level 3, allowing them to operate stably in humid environments and are suitable for a variety of application scenarios.
5. Soldering Friendly: The products are compatible with SMT assembly and soldering processes, with clear soldering temperature curves suggested for both reflow and manual soldering, facilitating soldering operations in production.
6. Reliability Testing: The products undergo rigorous reliability testing, including endurance tests, high-temperature and high-humidity storage, high-temperature storage, low-temperature storage, temperature cycling, and thermal shock, ensuring the long-term reliability of the products.
|
Model |
Color |
Luminous Intensity (mcd@20mA) |
Dominant Wavelength (nm@20mA) |
Forward Voltage (V@20mA) |
Test Condition IF(mA) |
|
H8-212QLB |
Blue |
135 |
460 - 473 |
2.6-3.4 |
20 |
|
H8-212QTCG/5M |
Green |
285 |
515 - 536 |
2.5 - 3.0 |
5 |
|
H8-212QLB/5M |
Blue |
36 |
460 - 473 |
2.5 - 3.1 |
5 |
|
H8-212QKYG |
Yellow-Green |
45 |
566 - 574 |
1.8 - 2.6 |
20 |
|
H8-212QFO |
Orange |
140 |
600 - 609 |
1.8 - 2.4 |
20 |
With its compact size, high brightness, environmental performance, stable performance, and soldering friendliness, the H8-212 series product has become a popular choice in the LED market. Whether used for indicator lights, backlights, or other lighting applications, these products provide excellent performance and reliable service. The table above clearly shows the colors and main parameters of different models, providing a valuable reference for selecting the appropriate product.
